Designed for spraying of shotcrete on rock surfaces for securing of the rock, as well as protection against penetration of water and moisture.

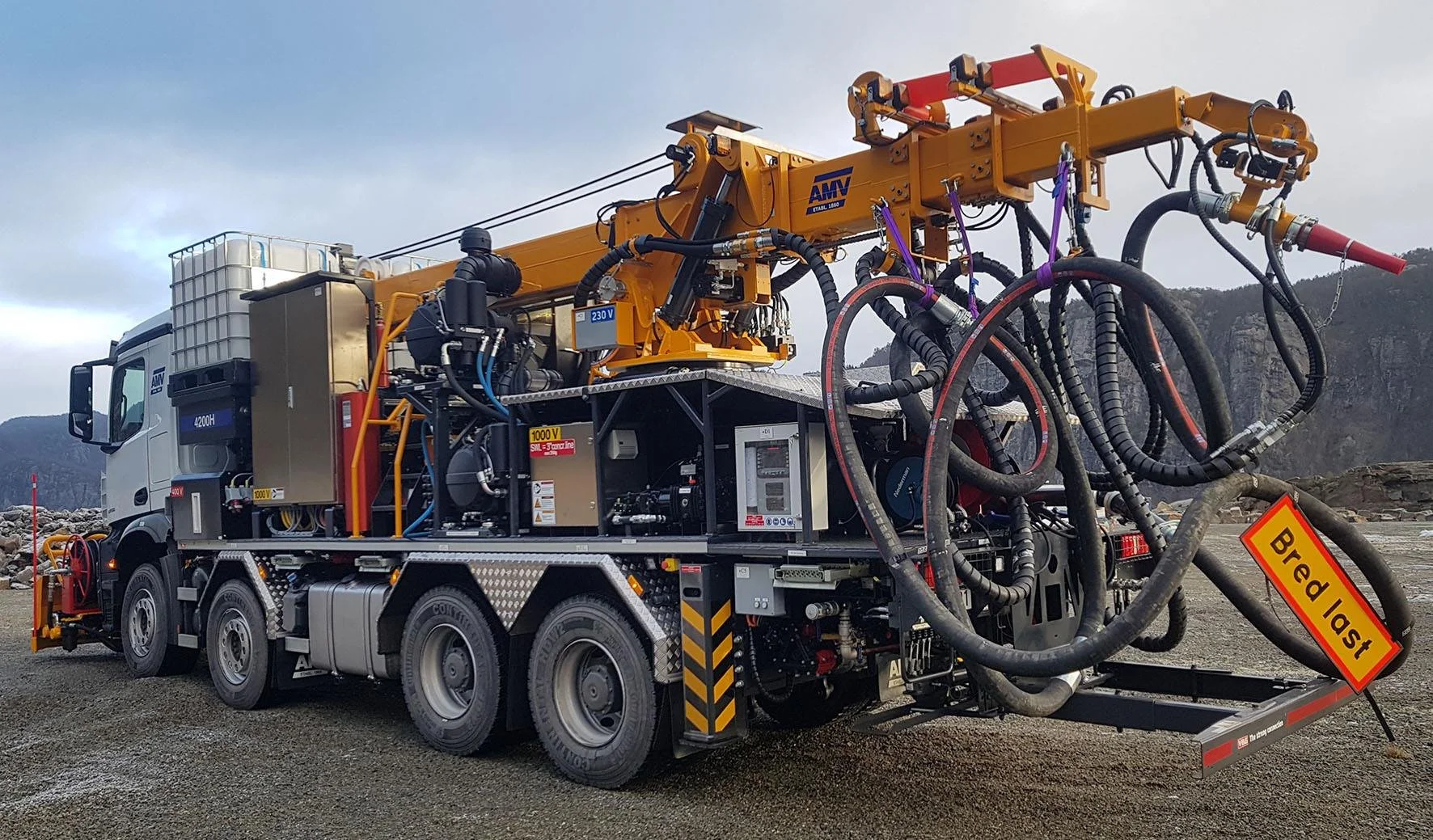

AMV 4200H
The machine has a simple and sturdy boom design which makes it the preferable option for mining- and tunnel applications with medium to large cross sections. The boom geometry with it long reach, makes the machine ideal larger cross sections, both underground and in rock cuts. The machine is ideal for shotcreting on membrane materials, where the long reach and easy operation makes the machine an efficient choice. The operator maneuver the machine from the surroundings, using the radio-controlled handheld operator panel, thus allowing flexible viewing position for to ensure the best overview of the working situation.

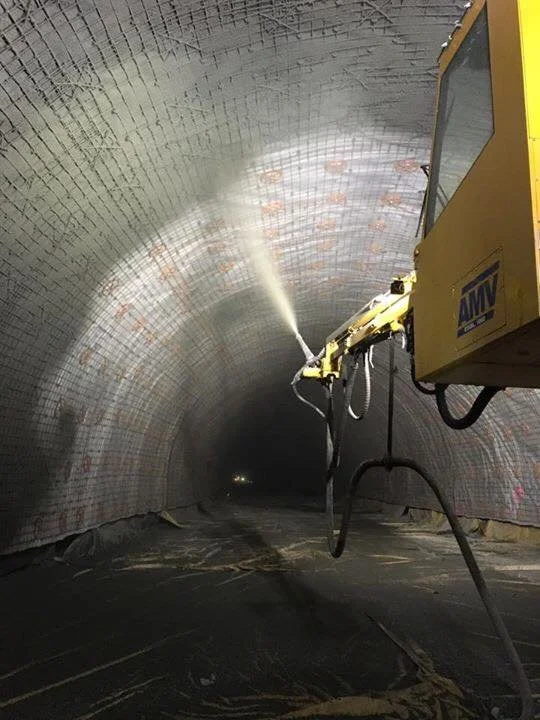

AMV 7450H
Designed for spraying of shotcrete on rock surfaces for securing of the rock, as well as protection against penetration of water and moisture. The machine has a compact design and is the preferable option for mining- and tunnel applications where the cross section is narrow, and the available height is limited. The boom geometry is with its extensions and twisting properties, makes the machine ideal for complex spraying conditions in confined spaces. The operator can either maneuver the machine from the enclosed operator cabin, which can be mounted in two different locations, or from the surroundings using either cable- or radio-controlled handheld operator panel.

General
These machines is fitted with either a ball-valve or s-tube type, hydraulic operated concrete pump, both with a theoretic maximum pumping capacity of 25 m³ / hour. Hydraulic powerpack, air compressor and electric components are secured inside the enclosed container compartment. The machines can be delivered with three different drive lines; electro-hydraulic (1000V / 690V), diesel-hydraulic or hybrid (combination of electro-hydraulic and diesel-hydraulic).
